Teton Professional Pond & Koi Filters

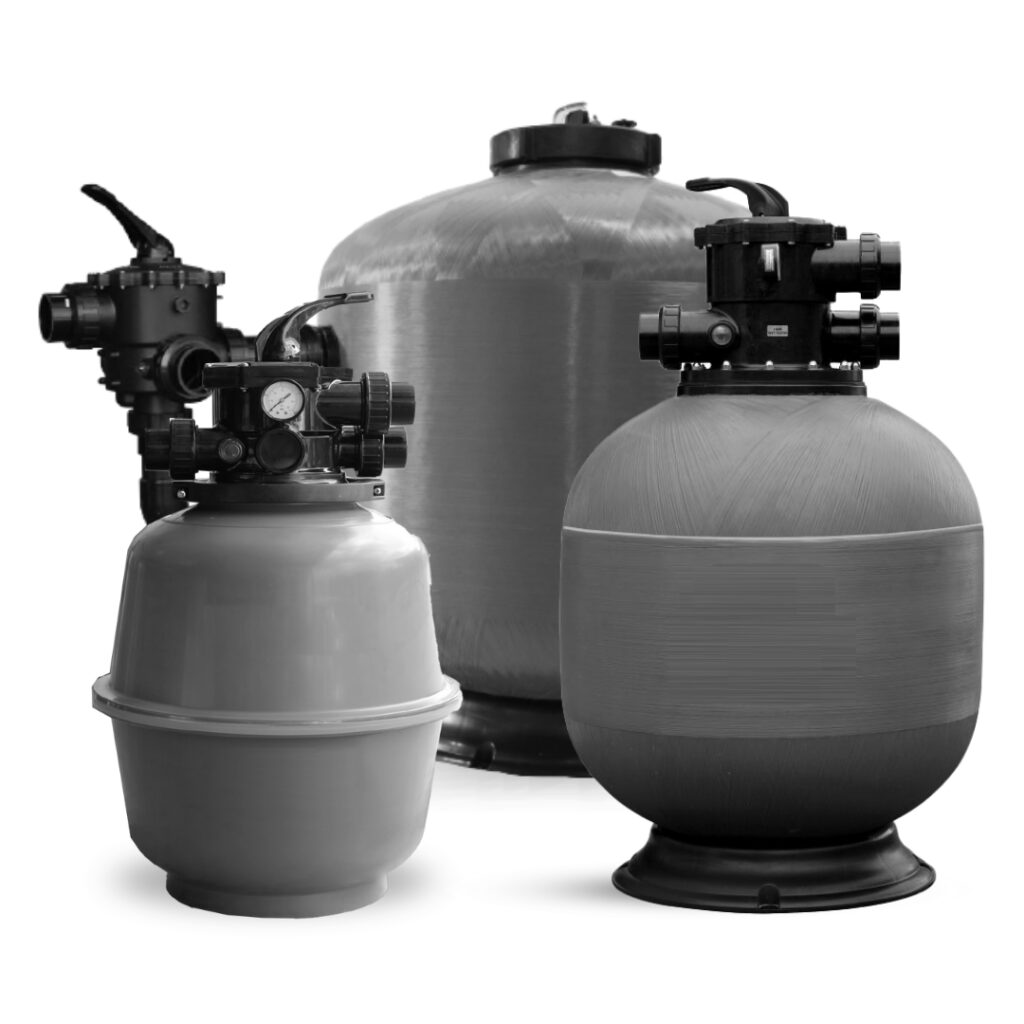

Teton XKF Series Professional Koi Pressure Filter is built for high-demand koi ponds, water gardens, and swim ponds with heavy fish loads. Engineered with semi-floating bead media for powerful biological filtration, enhanced internal design to reduce clogging, and an included multi-port valve for efficient backwashing and operation, the XKF Series delivers dependable water clarity in tough pond environments. Available in seven models for ponds from 2,500 to 24,000 gallons.

Features
  • Semi-floating bead media — provides a large surface area for beneficial bacteria and enables fast, effective backwashing with minimal effort
  • Enhanced internal components — reduce clogging and maintain strong, consistent flow even under heavy fish loads
  • Multi-port valve included — backwash, rinse, filter, and bypass modes accessible from one valve for easy day-to-day operation
  • Pressure-rated UV- and corrosion-resistant tank — built for long-term outdoor use in all weather conditions
  • Handles ponds up to 24,000 gallons and fish loads up to 725 lbs — scales to professional koi pond requirements
  • High surface area media supports beneficial bacteria for powerful, natural biological filtration
  • High flow capacity up to 10,800 GPH — works with high-performance pump systems without restriction

Teton XKF Series Professional Pond & Koi Pressure Filters are heavy-duty, high-capacity filtration systems engineered for koi ponds, large water gardens, swim ponds, and aquaculture applications. Designed for demanding environments with high flow rates and heavy fish loads, the XKF Series delivers strong mechanical and biological filtration with the reliability professional installers expect.

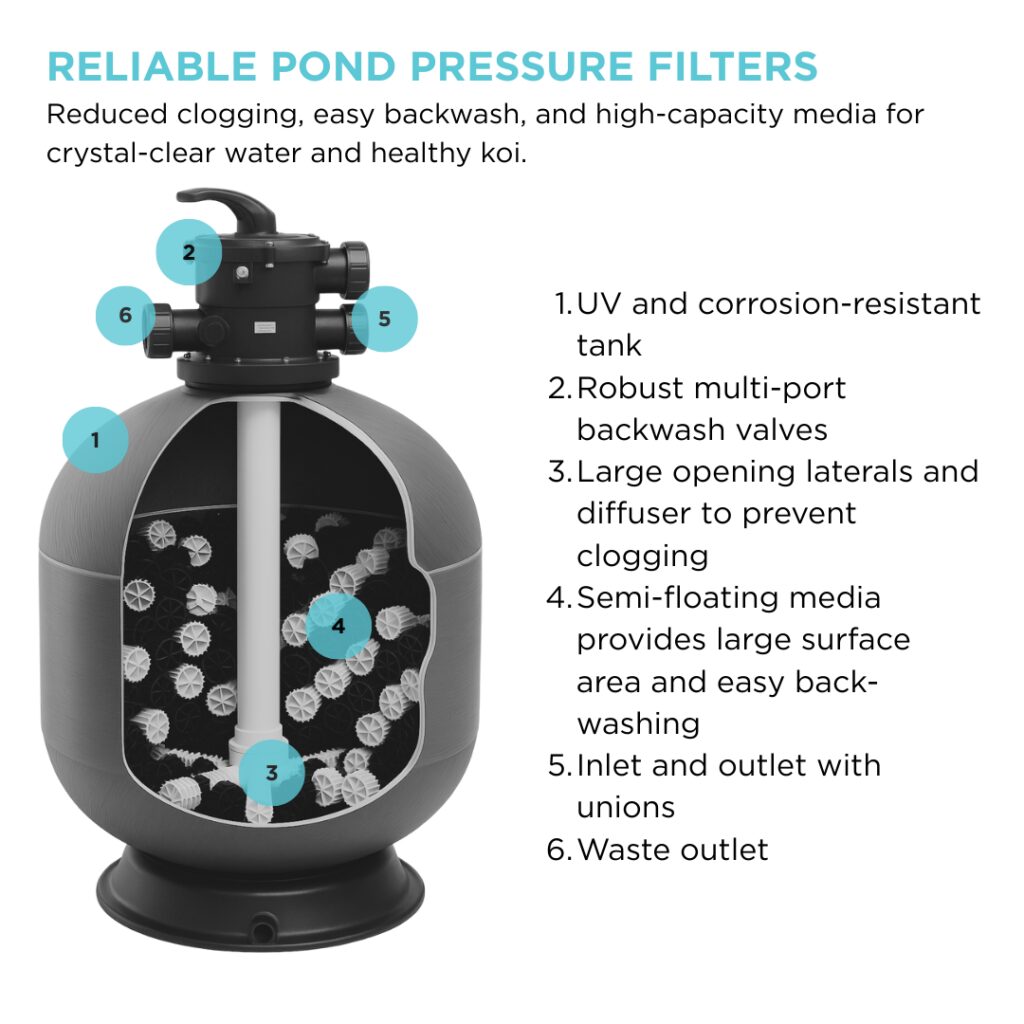

At the bottom of the XKF Series is its semi-floating bio media, designed to provide expansive surface area for beneficial bacteria while supporting efficient debris capture. This media design improves biological performance and allows for more effective backwashing, helping release trapped waste, restore flow, and reduce maintenance time.

The system is built with enhanced internal components to help minimize clogging and maintain consistent flow rates in high-load pond conditions. Each filter also includes a multi-port valve, allowing operators to switch between filter, backwash, rinse, and bypass functions with straightforward control.

The heavy-duty tank is designed for outdoor performance, with UV- and corrosion-resistant construction built to withstand demanding installation environments season after season.

With seven models available for ponds from 2,500 to 24,000 gallons and fish loads from 100 to 725 pounds, the Teton XKF Series scales from large residential koi ponds to professional-grade installations. Rugged, efficient, and built for long-term performance, the XKF Series is a serious filtration solution for serious pond systems.

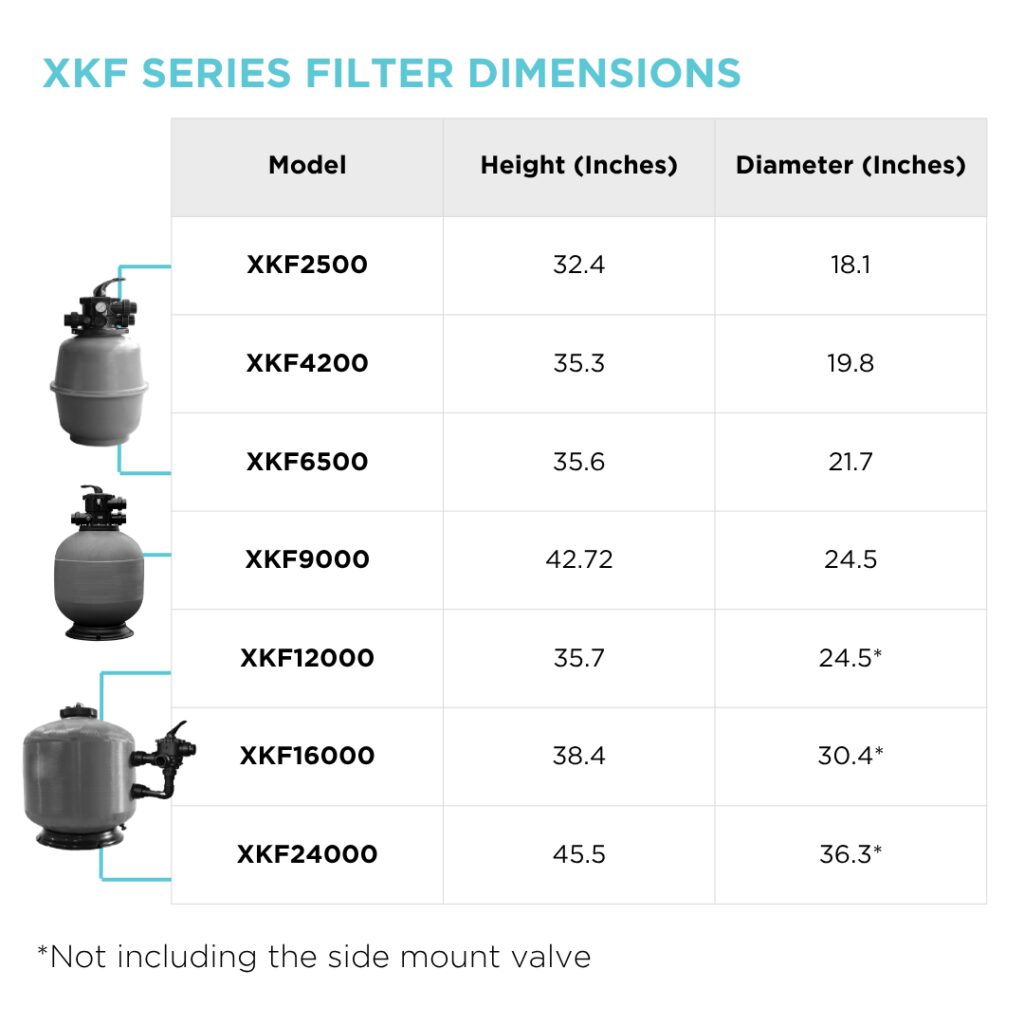

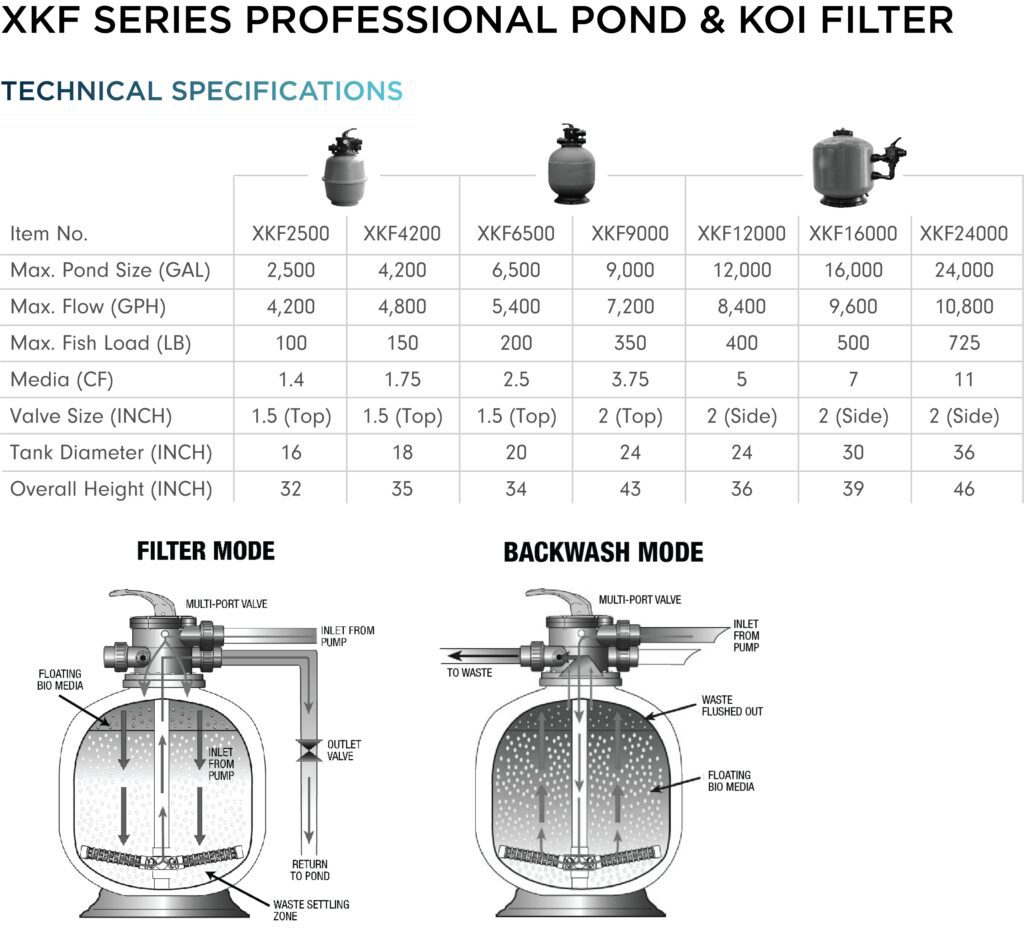

XKF2500:
  • Max Pond: 2,500 gal
  • Max Flow: 4,200 GPH
  • Fish Load: 100 lbs
  • Media: 1.4 CF
  • Valve: 1.5″ Top & 2″ adapter
  • Tank Ø: 16″
  • Height: 32″
XKF4200
  • Max Pond: 4,200 gal
  • Max Flow: 4,800 GPH
  • Fish Load: 150 lbs
  • Media: 1.75 CF
  • Valve: 1.5″ Top & 2″ adapter
  • Tank Ø: 18″
  • Height: 35″
XKF6500
  • Max Pond: 6,500 gal
  • Max Flow: 5,400 GPH
  • Fish Load: 200 lbs
  • Media: 2.5 CF
  • Valve: 1.5″ Top
  • Tank Ø: 20″
  • Height: 34″
XKF9000
  • Max Pond: 9,000 gal
  • Max Flow: 7,200 GPH
  • Fish Load: 350 lbs
  • Media: 3.75 CF
  • Valve: 2″ Top
  • Tank Ø: 24″
  • Height: 43″
XKF12000
  • Max Pond: 12,000 gal
  • Max Flow: 8,400 GPH
  • Fish Load: 400 lbs
  • Media: 5 CF
  • Valve: 2″ Side
  • Tank Ø: 24″
  • Height: 36″
XKF16000
  • Max Pond: 16,000 gal
  • Max Flow: 9,600 GPH
  • Fish Load: 500 lbs
  • Media: 7 CF
  • Valve: 2″ Side
  • Tank Ø: 30″
  • Height: 39″
XKF24000
  • Max Pond: 24,000 gal
  • Max Flow: 10,800 GPH
  • Fish Load: 725 lbs
  • Media: 11 CF
  • Valve: 2″ Side
  • Tank Ø: 36″
  • Height: 46″
