XS Series Splash Submersible Fountain Pump

XS Splash Series

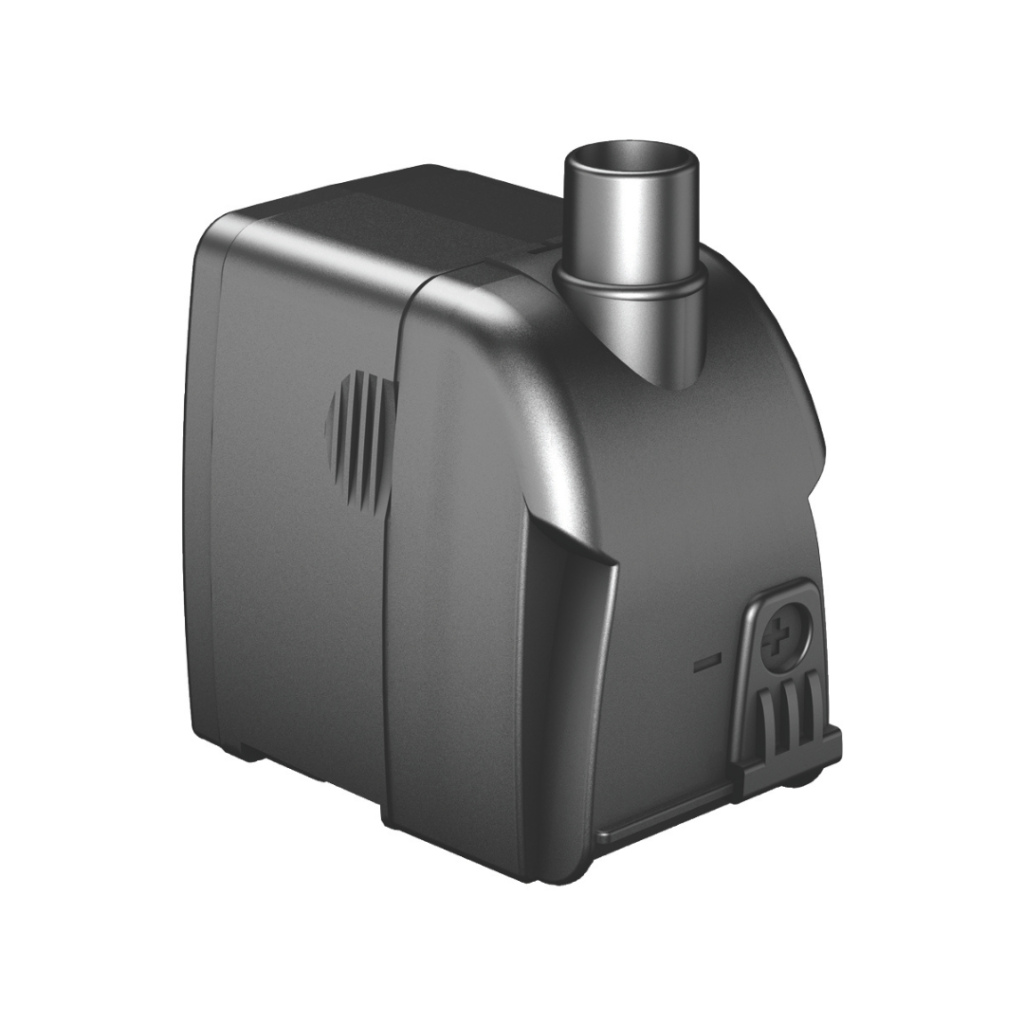

Teton XS Series is a compact and versatile submersible fountain pump designed for garden fountains, statuary, small ponds, aquariums, and decorative water features.

Built-in flow control allows output to be adjusted directly at the pump without an external valve, while the thermally protected motor is designed for dependable continuous operation.

Features ⌄

Built-in adjustable flow control — dial in the exact flow rate needed without an external valve; perfect for fountains requiring a specific output
Quiet magnetic drive operation — magnetically driven impeller runs significantly quieter than direct drive pumps; ideal for indoor and sleep-environment applications
Low-water intake pre-filter screen — reduces debris entry to the impeller and prevent clogging
Thermally protected motor — automatic safety shutdown prevents motor burnout from overheating
Compact design — fits in small fountain basins, tabletop features, and tight aquarium sumps where larger pumps won’t fit
Oil-free design — safe for freshwater and saltwater aquariums, aquaponics systems, and fish-containing water features without contamination risk
Stainless steel impeller shaft with seamless-coated impeller magnet — smooth, efficient, long-lasting magnetic drive performance

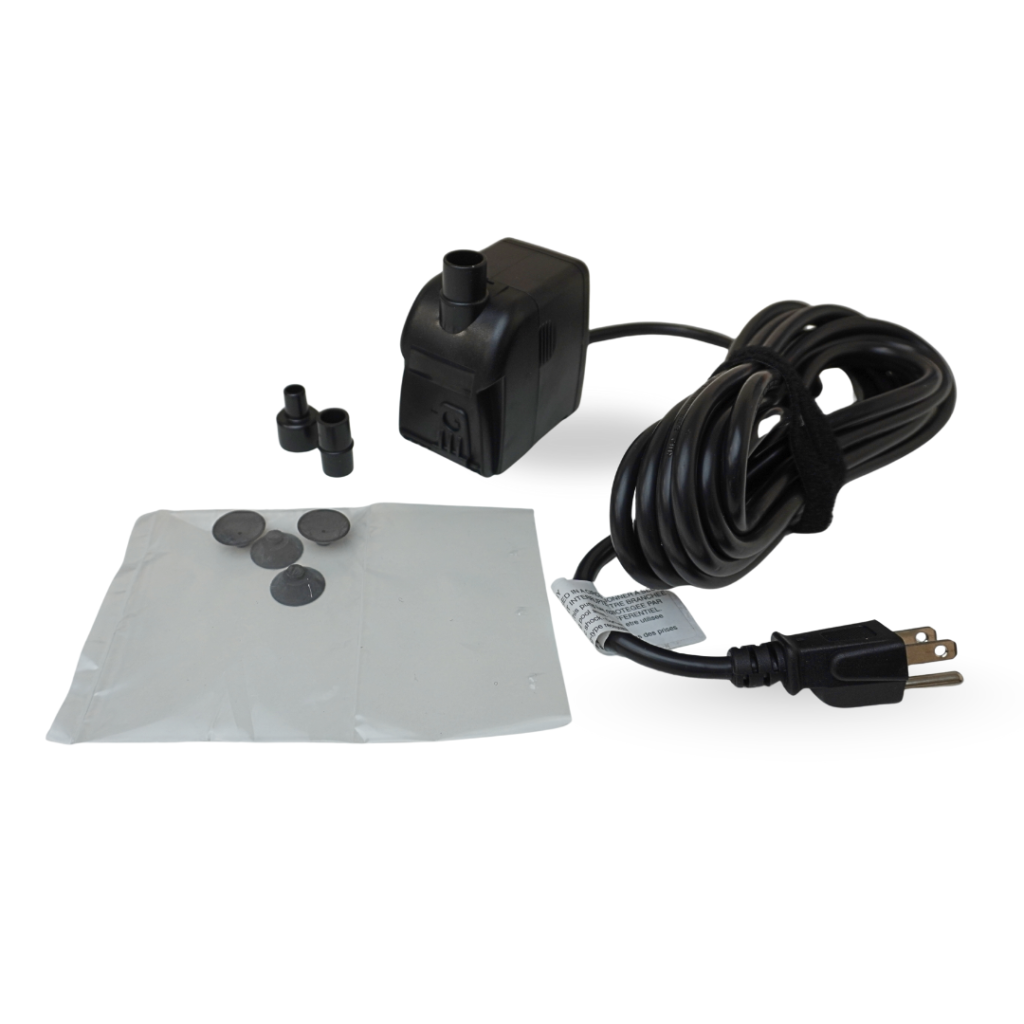

Tubing adapters included — fits 3/8″ to 3/4″ ID vinyl tubing depending on model for easy no-tools connection

Overview Technical Data Resources

Teton XS Series is a compact submersible pump for garden fountains, decorative statuary, small ponds, aquariums, and indoor water features. Six models provide maximum flow rates from 75 to 265 GPH, making the series suitable for applications ranging from small tabletop features to larger decorative fountains and small pond systems.

A compact motor and impeller assembly provide reliable water movement while keeping the pump footprint small. The built-in flow control allows water output to be adjusted directly at the pump, making it easier to match the flow to the fountain or water feature without installing a separate control valve.

The motor is fully encapsulated and includes self-protection against overheating. The XS Series can be used indoors or outdoors and is designed for water temperatures up to 95°F (35°C). For electrical safety, the pump must be connected to a properly grounded GFCI-protected receptacle and should remain fully submerged during operation.

Routine maintenance is straightforward. Teton recommends regularly cleaning the rotor/impeller and pump chamber to remove debris and lime-scale buildup. Mineral deposits can be removed by soaking the affected components in vinegar or lemon juice before reassembly.

Magnetic Drive Operation

A sealed electromagnet in the motor housing generates a rotating magnetic field.
The field drives a stainless steel shaft impeller fitted with a seamlessly coated magnetic impeller — the only moving part, with no direct mechanical connection.
Water is drawn in through the prefilter screen at the base and pumped upward through the outlet at the selected flow rate.
The built-in flow control dial restricts the outlet to reduce flow without creating back-pressure stress on the motor.
The thermally protected motor monitors operating temperature and shuts down automatically to prevent burnout if overheated.

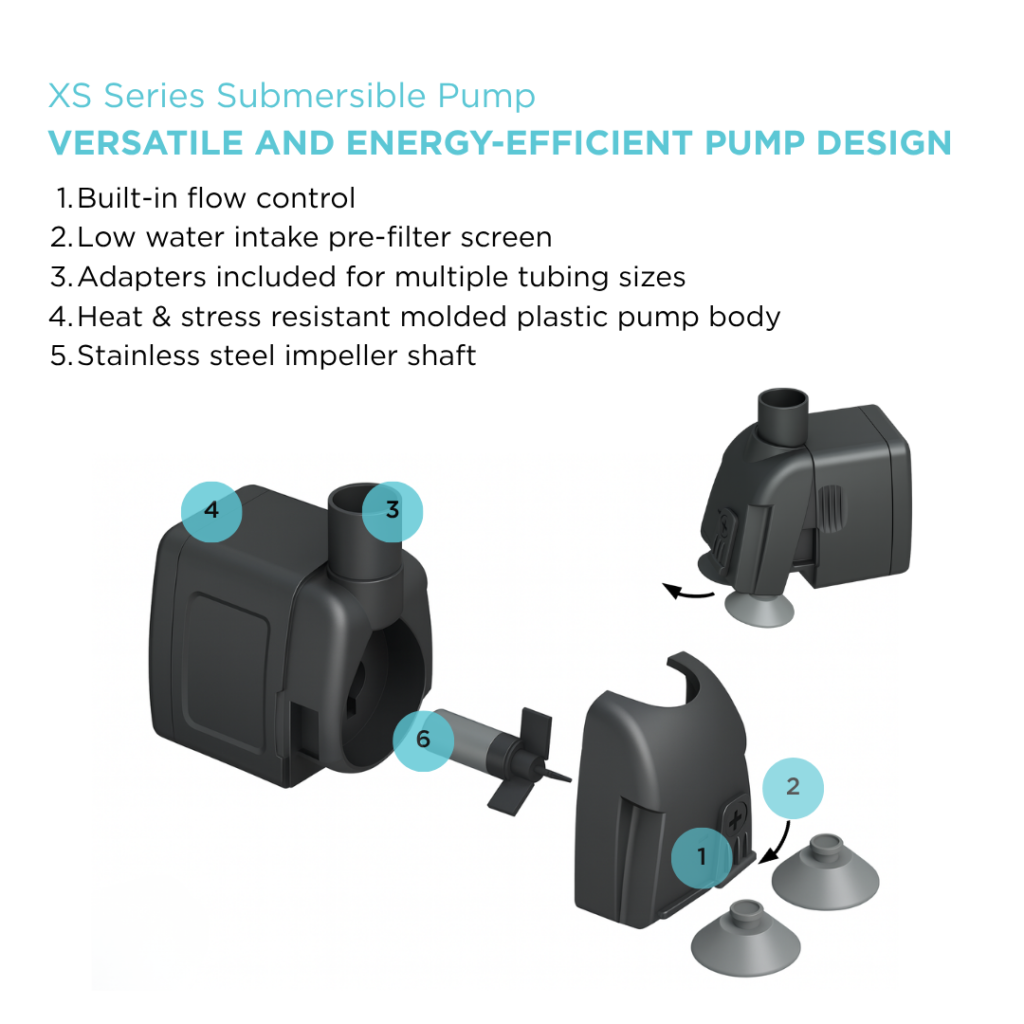

Construction

Heat- and stress-resistant molded plastic body
Stainless steel impeller shaft
Seamless-coated impeller magnet
Built-in flow control
Thermally protected motor

Model	Max flow (GPH)	Max head (in)	Power (W)	Cord length	Tubing adapters (ID)	Pump Length (INCH)	Pump Width (INCH)
XS75	75	18	4	6 ft	3/8, 1/2 in	2	1.9
XS100	100	30	4	6 ft	3/8, 1/2 in	2	1.9
XS115	115	30	9	16 ft	3/8, 1/2 in	2.7	2.2
XS165	165	50	12	16 ft	3/8, 1/2 in	2.7	2.2
XS215	215	59	18	16 ft	3/8, 1/2, 5/8, 3/4 in	3.1	3.7
XS250	265	82	26	16 ft	3/8, 1/2, 5/8, 3/4 in	3.1	3.7
