XC Course Pond & Waterfall Pump

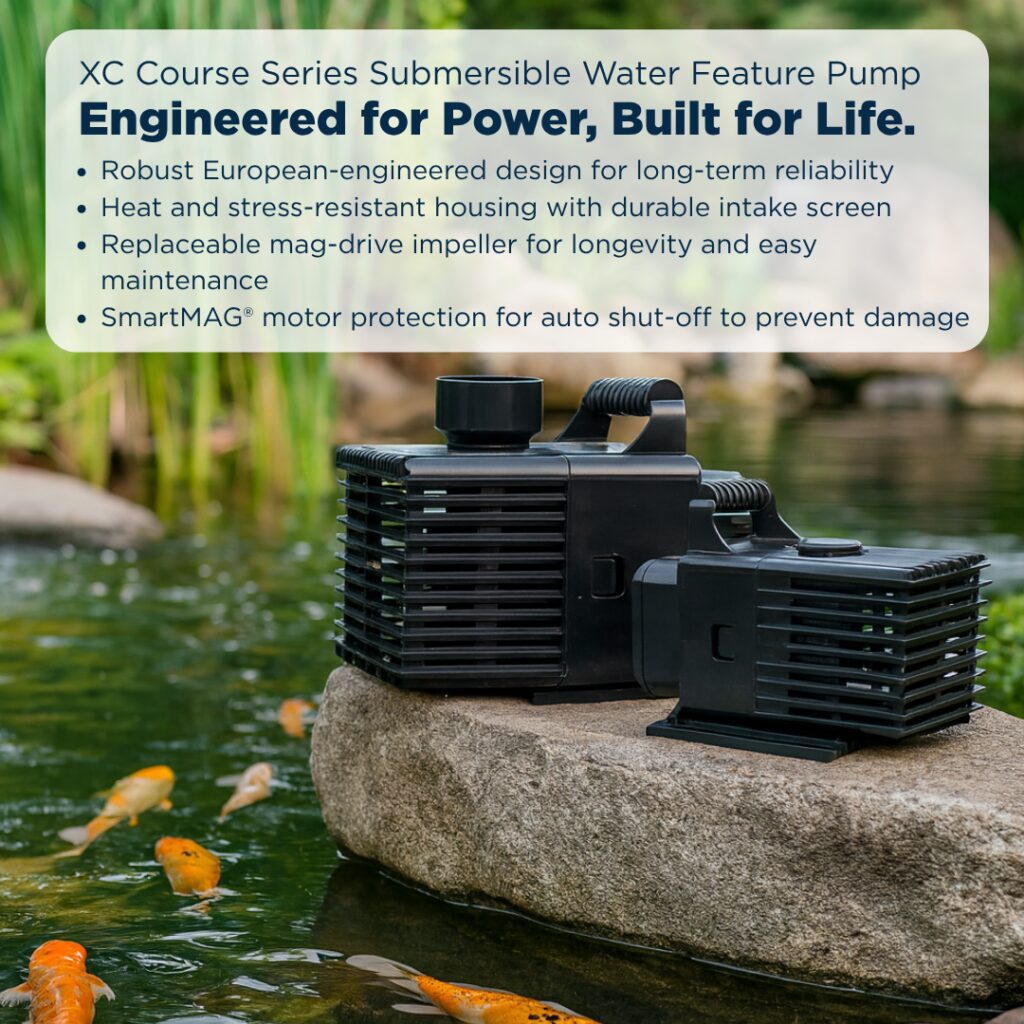

Teton XC Series is a versatile mag drive pond pump that works fully submersed or installed in-line — your choice. SmartMAG® motor protection automatically shuts off the pump if it runs dry, preventing motor burnout.

European-engineered for heat and stress resistance, the XC Series delivers quiet, energy-efficient performance with NPT threaded connections, a large intake screen, moveable footplate, and an extra-long 32 ft power cord.

Six models from 1,500 to 5,900 GPH for ponds, waterfalls, and water features. 2-year warranty.

Features ⌄

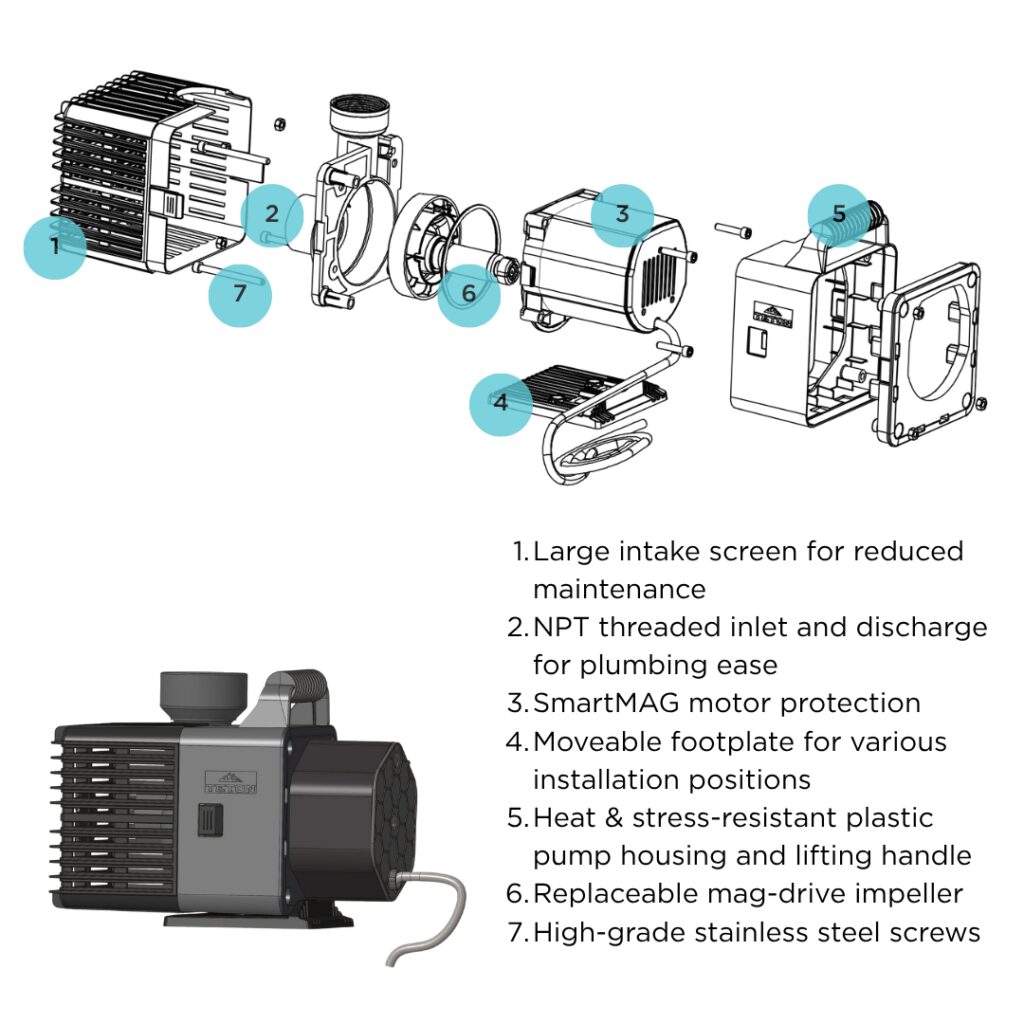

Amphibious mag drive design — operates fully submersed or installed inline, giving installers maximum flexibility for pond, skimmer, and external filter setups
SmartMAG® automatic dry-run protection — detects low water and shuts down automatically, restarting when water returns; protects the motor without manual intervention
Energy-efficient magnetic drive motor — significantly lower power consumption per GPH versus direct drive pumps; no shaft seal to wear, no oil near fish
Replaceable mag-drive impeller — user-serviceable for long-term reliability and reduced total cost of ownership
Extra-long 32 ft power cord — reaches distant outlets and permits flexible pump placement without extension cords
Large intake screen — reduces clogging frequency and maintenance intervals
Moveable footplate — adjustable for different installation orientations in the pond or skimmer
NPT threaded inlet and outlet — compatible with standard PVC plumbing on all six models
Heat- and stress-resistant European-engineered housing — built for continuous outdoor operation

Overview Specifications How to Use Resources

Teton XC Series Mag Drive Pump is built for pond owners who want reliable, quiet, energy-efficient water movement without the complexity of a direct drive pump. The magnetic drive motor is the defining advantage: no mechanical shaft seal means no seal to wear out, no oil contamination risk near fish, and significantly lower energy consumption per GPH compared to equivalent direct drive pumps.

The XC Series is an amphibious design — it operates equally well fully submersed at the bottom of a pond or skimmer box, or installed inline outside the water. This flexibility makes it suitable for a wide range of installation scenarios including tight skimmer vaults, external filter housings, and pump-to-waterfall configurations without a dedicated pump basin.

SmartMAG® automatic motor protection is the standout safety feature. The built-in dry-run detection system shuts the pump down automatically when water level drops too low, then restarts once water returns — protecting the motor without any manual intervention. The replaceable mag-drive impeller means the pump is user-serviceable for long-term value. A 32 ft power cord and moveable footplate give installation flexibility. NPT threaded inlet and discharge accept standard plumbing connections on all models. 2-year warranty.

Magnetic Drive Operation

An electromagnet in the sealed motor housing creates a rotating magnetic field.
This field drives a ceramic impeller that is the only moving part — no direct mechanical connection between motor and impeller, eliminating shaft seals.
Water is drawn in through the large intake screen and pushed out through the NPT discharge at flow rates from 1,500 to 5,900 GPH.
SmartMAG® sensor continuously monitors water presence. If the impeller runs without sufficient water, the system triggers automatic shutdown within seconds.

Once water returns to an adequate level, the pump automatically restarts — no user action required.

XC1500	Max Flow: 1,500 GPH Max Head Lift: 14 ft Power: 45 W Inlet: 1″ FPT Outlet: 1″ FPT Cord Length: 32 ft
XC2000	Max Flow: 2,000 GPH Max Head Lift: 19 ft Power: 75 W Inlet: 1″ FPT Outlet: 1″ FPT Cord Length: 32 ft
XC3100	Max Flow: 3,100 GPH Max Head Lift: 21.5 ft Power: 165 W Inlet: 1-1/2″ FPT Outlet: 1-1/2″ FPT Cord Length: 32 ft
XC4200	Max Flow: 4,200 GPH Max Head Lift: 17 ft Power: 190 W Inlet: 1-1/2″ FPT Outlet: 2″ FPT Cord Length: 32 ft
XC5100	Max Flow: 5,100 GPH Max Head Lift: 20.25 ft Power: 250 W Inlet: 1-1/2″ FPT Outlet: 2″ FPT Cord Length: 32 ft
XC5900	Max Flow: 5,900 GPH Max Head Lift: 22.25 ft Power: 290 W Inlet: 1-1/2″ FPT Outlet: 2″ FPT Cord Length: 32 ft

Installation Options

XC Series can be installed in two ways: (1) Submersed at the pond bottom or inside a skimmer box — the most common installation; (2) Inline above water in an external filter housing or pump vault, with water fed by gravity or a flooded suction connection. Use the moveable footplate to adjust orientation. NPT threaded connections suit both configurations. For submersed installation, maintain adequate depth above the intake to prevent dry-running.
